TECHNICAL SPECIFICATION
-
Medium Duty All Geared Lathe Machines Induction Hardened Bed Guide-ways Above 400 BHN
-
Quality Head Stock Gears above 45 Hrc of graded material
-
9 speed Option and Speed option between 1200 R.P. M
-
Low Maintenance Design
-
Ergonomic Tail Stock Design
-
Highly balanced rotating Parts For precision Work
-
Easy Panel Options For Power Brake and On/Off Inching
| Height of Center | – | 215mm |
| Bed Width | – | 279mm |
| Swing over Bed | – | 425mm |
| Swing over Cross slide | – | 260mm |
| Movement of cross slide | – | 250mm |
| Swing in Gap | – | 620mm |
| Bed Type | – | 2V & 2 Flat |
| Drive V-Belt | – | B-48 |
| Spindle Bore | – | 50mm |
| Spindle Nose & Threadad | – | 75mm / 6TPI |
| Tail stock Spindle Dia/Taper | – | 50.8mm/MT-4 |
| Tail stock Spindle Travel | – | 150mm |
| Compound Dlide Travel | – | 150mm |
| Lead screw Diameter & pitch | – | 31.75mm/4TPI |
| Renge of Matric Threads | – | 0.5 to 7 |
| Renge of inch Threads | – | 4 to 48 TPI |
| Electric Motor 1440 RPM. | – | 2 HP/3 Phase |
ALL GEARED IMPORTED HEAVY DUTY LATHE MACHINE

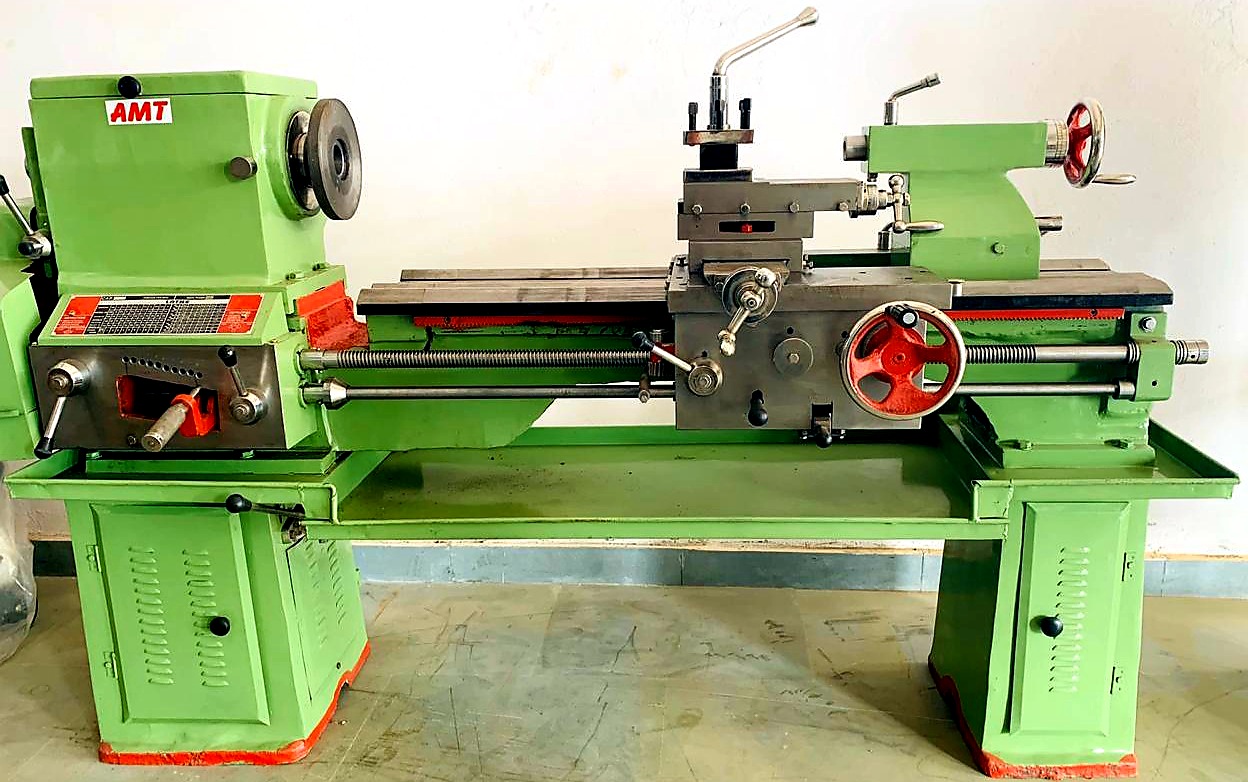

ALL GEARED MEDIUM DUTY LATHE MACHINE
HEAVY DUTY LATHE MACHINE SEMI NORTON

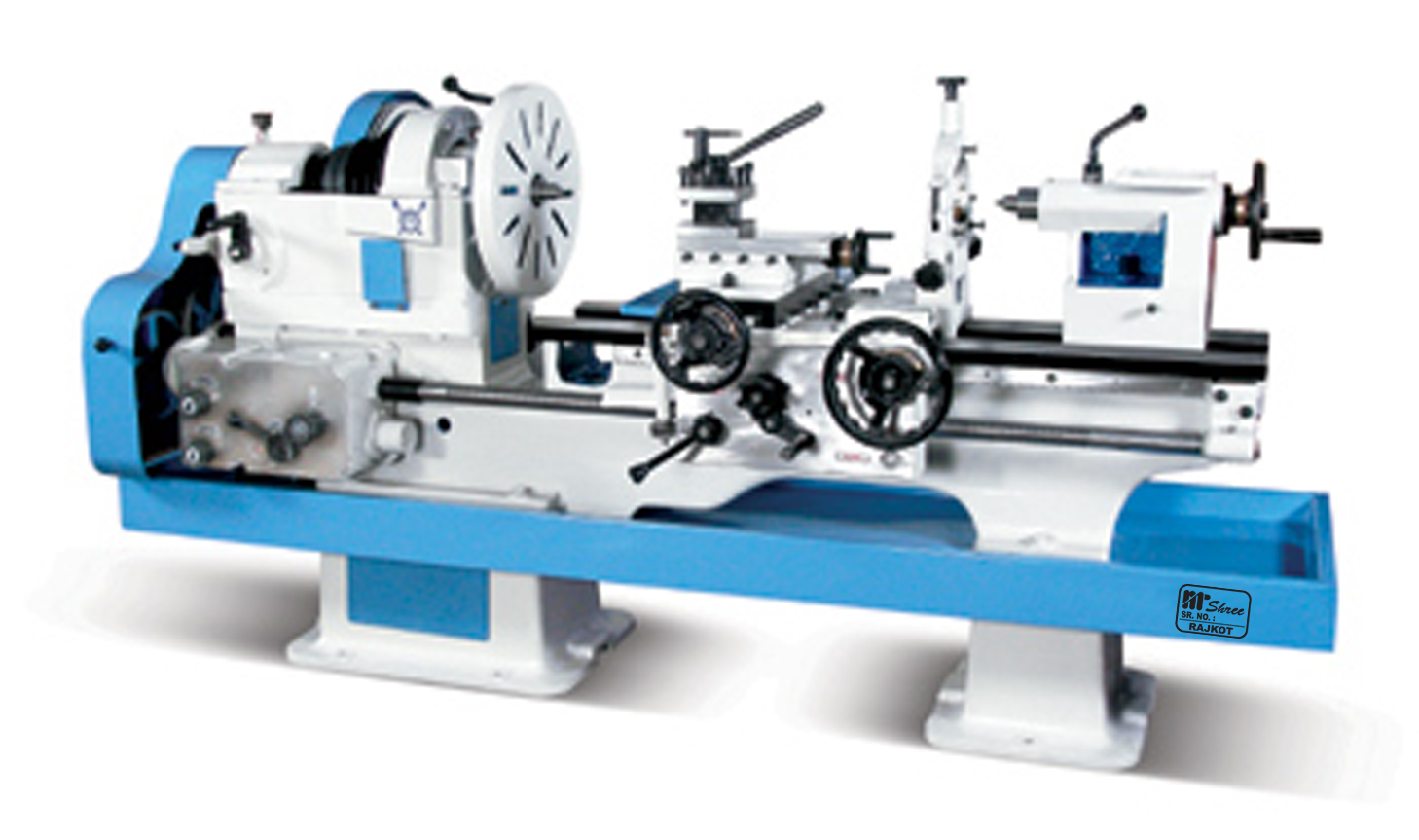

HEAVY DUTY LATHE MACHINE SHIMOGA TYPE

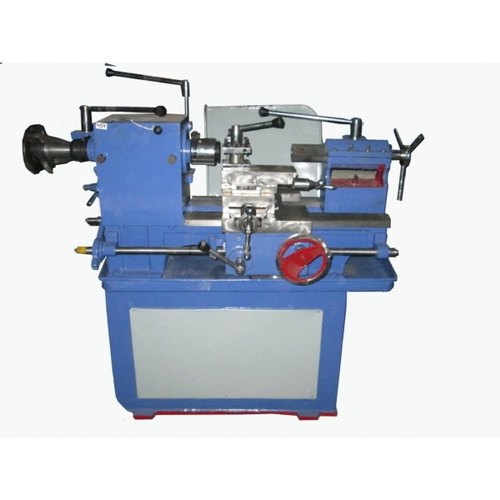

LATHE ADDA COLLET TYPE
MEDIUM DUTY LATHE MACHINE TOOL ROOM

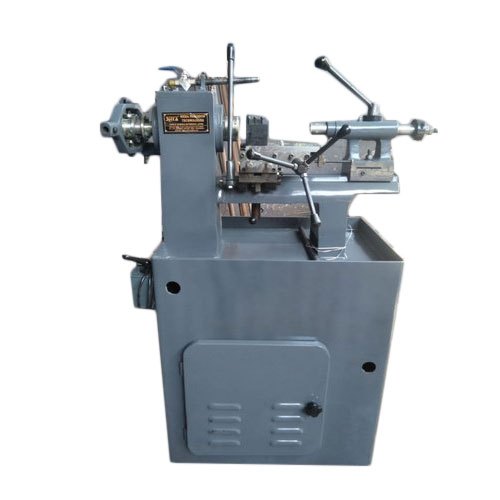

MICRO COLLET LATHE ADDA
Standard Accessories
- 10″ Chuck Plate
- Spindle Sleeve
- 2 Dead Center
- Change Gear Set
- Tool Post Bolt Key
- Motor Pulley
Standard Accessories, SEMI NORTON HEAVY DUTY LATHE MACHINE
- 10″ Chuck Plate
- Face Plate
- Steady Rest
- Spindle Sleeve
- 2 Dead Center
- Change Gear Set
- Tool Post Bolt Key
- Motor Pulley
| Height of Center | – | 254mm | |
| Bed Width | – | 325mm | |
| Swing over Bed | – | 490mm | |
| Swing over Cross slide | – | 290mm | |
| Movement of cross slide | – | 300mm | |
| Swing in Gap | – | 800mm | |
| Bed Type | – | 2V & 2 Flat | |
| Drive V-Belt | – | Double Belt C-70 | |
| Spindle Bore | – | 53mm | |
| Spindle Nose & Threadad | – | 6TPI / 75mm | |
| Tail stock Spindle Dia/Taper | – | 57.15mm/MT-4 | |
| Tail stock Spindle Travel | – | 190mm | |
| Compound Dlide Travel | – | 150mm | |
| Lead screw Diameter & pitch | – | 38mm/4TPI | |
| Renge of Matric Threads | – | 1 to 6 | |
| Renge of inch Threads | – | 2 to 24 TPI | |
| Electric Motor 1440 RPM. | – | 3 HP/3 Phase | |
|
Range |
Admit Between Center |
Weight (Approx) |
|
|
5.5 feet |
550mm |
1100kg. |
|
|
7 feet |
1000mm |
1300kg. |
|
|
9 feet |
1550mm |
1500kg. |
|
|
10 feet |
1850mm |
1750kg. |
|
|
12 feet |
2450mm |
2050kg. |
|
|
14 feet |
3050mm |
2250kg. |
|
|
16 feet |
3650mm |
2450kg. |
|
IMPORTED ALL GEARED TOOL ROOM LATHE MACHINE
- Casting iron foot stander as optional
- 52mm spindle bore
- 218mm width of bed
- Hardened and ground bed ways
- 3HP(2.4kW)three phase motor.
- Foot brake giving rapid braking.
- Emergency stop button equipped on the front of headstock.
- Jog button for easy gear engagement and inching spindle.
- Extra safety switch shuts down machine automatically for changing belt or gear for threading cutting.
| em | 6241*1000MM |
| Max. Swing over bed | 400mm(15.7”) |
| Max.swing over gap | 540mm(21.2”) |
| Center height | 198mm(7.7”) |
| Distance between centers | 500/750/1000mm(22”/30”/40”) |
| Bed width | 187mm(7-3/8”) |
| Bed length | 1248mm(49-1/8”)1655mm(64-1/8”)1363mm(53-2/3”) |
| Spindle bore | 38mm/51mm |
| Spindle nose | D1-4 / D1-5 |
| Taper in sleeve | MT #3 |
| Speeds number | 8 / 16 |
| Speeds range | 70-2000 rpm / 35-2000 rpm |
| Cross slide travel | 170mm(6-11/16”) |
| Compound rest travel | 95mm(3-9/16”) |
| Lead screw thread | 8TPI / 3mm / 4mm |
| Feed rod diameter | 19mm(3/4”) |
| Cutting tool max section | 16mmx16mm(5/8”x5/8”) |
| Threads imperial pitches | 36Nos.8-112TPI /(34Nos.4-56TPI) |
| Threads metric pitches | 28Nos.0.2-5mm(26Nos.0.4-7mm) |
| Longitudinal feeds imperial | 36Nos.0.0019-0.0273”/rev(32Nos.0.002-0.548”/rev) |
| Longitudinal feeds metric | 36Nos.0.050-0.696”/rev(32Nos.0.052-0.392mm/rev) |
| Cross feeds imperial | 36Nos.0.0006-0.0094”/rev(32Nos.0.007-0.018”/rev) |
| Cross feeds metric | 36Nos.0.013-0.188”rev(32Nos.0.014-0.380mm/rev) |
| Quill diameter | 32mm(1-1/4”) |
| Quill travel | 100m(3-15/16”) |
| Quill taper | MT#3 |
| Motor power | 2.2 kw 3PH / 1PH |
