Milling Machines
Introducing the Kenford Milling Machine – built for precision and stability. A 55-degree dovetail Y and Z-axis, TF-lined saddle guideways, and hardened surfaces ensure accuracy and durability for every project.
- Adjustable double Nut design for minimal backlash
- Double Lock on the saddle, Ram & Knee
- X-axis & Y-axis lined with Turcite B Coating.
- Double-speed motor for high RPM
- Built-in standard coolant tank in the base of the machine
- Electrical panel box fuse, overhauling
- Relays etc. BCH OR SIMILAR make with ‘CE’ mark
- Hardened & Ground X & Y slideways
Request a Quote
Made in Taiwan
2 Yrs Warranty*
On-site Service*
Supreme Quality
| SPECIFICATIONS | NO:3 | NO:4 |
|---|---|---|
| Table size(mm) | 254×1270 (10″x50″) | 254×1370 (10″x54″) |
| Longitudinal Travel (mm) | 850 | 950 |
| Cross Travel (mm) | 385 | 400 |
| Vertical Travel(mm) 3 numbers | 380 | 400 |
| Table T-slots(mm) 3 numbers | 16x3x63 | 16x3x63 |
| Spindle Motor (H.P.) | 3 | 3 |
| Spindle Speed (RPM) | 16 Steps / 50-3500 | 16 Steps / 50-3500 |
| Spindle Taper | R8 | R8 |
| Spindle Nose to table Top (mm.) | 0-428 | 0-428 |
| Spindle Centre to Column Surface (mm). | 200-680 | 200-680 |
| Quill Travel (mm) | 127 | 127 |
| Auto Quill Feeds (per revolution)mm | 0.40/0.08/0.15 | 0.40/0.08/0.15 |
| Head Swivel | (RxL)90 degree / (FxB) 45 degree | (RxL)90 degree / (FxB) 45 degree |
| Ram Travel (mm) | 480 | 480 |
| Net Weight (kgs.) | 1280/1380kgs | 1280/1380kgs |
| Y – Axis | Dovetail Guide Way | Dovetail Guide Way |
| Z – Axis | 55dg. Swallow tail or Square Guideway | 55dg. Swallow tail or Square Guideway |

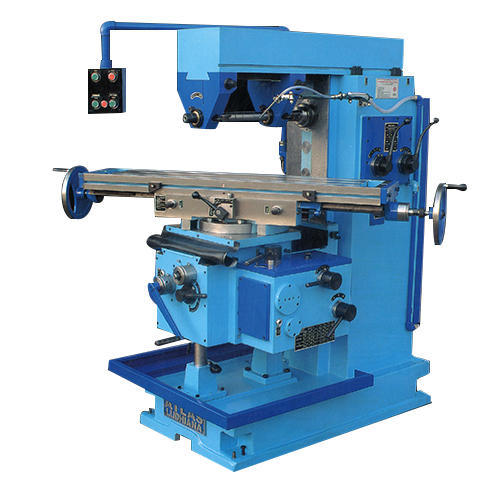

HORIZONTAL MILLING MACHINES
MILLING ADDA MACHINE
VERTICAL RAM TURRET DRO MILLING MACHINES
Characteristic of our Milling Machine
- This milling machine series offers high flexibility, with the milling head able to swivel 360° in the X direction, rotate +90° in the Y direction, and rotate 45° in the Z direction.
- The milling head is sourced from Taiwan, providing excellent performance in spindle speed and speed range for efficient and precise cutting.
- The spindle sleeve features automatic feeding and stopping, enhancing operational convenience.
- Both the table and knee are equipped with a centralized lubrication system, ensuring smooth and consistent operation.
- A hand pressure pump is provided to lubricate the guideways, lead screw, and nut for optimal machine maintenance.
- The machine can be operated with manual or motorized feed, with the option to install an automatic feeder for motorized feed.
- High-quality Taiwan SHNYMN lead screws are installed for reliable and smooth movement.
Standard Accessories
- 2 AXIS DRO SYSTEM
- Coolant equipment
- Machine lamp
- Tool box
- Instruction manual
- Lubrication system
- Draw bar
- Electric control panel
- Chip cover(rubber) front & back
- COLLET SET R8
- CLAMPING KIT 58 PCS
Optional Accessories
BORING HEAD
ISO 30 SPINDLE
ER 32 COLLETS AND ADAPTER
VIBRATING PAD
KEYLESS DRILL CHUCK
3 AXIS DRO
ROTARY TABLE VISE
